Albedo Net.Time
Universal time protocol translator 主要同步時鐘源設備
Net.Time
Net.Time is a Grandmaster clock that supports PTP and NTP over PRP and multiple input/output options such as IRIG-B, 1 PPS, ToD, MHz, T1/E1 and SyncE to satisfy all timing needs of power utility, enterprise and telco applications.
Net.Time is a universal protocol translator
Net.Time is very flexible because it accepts multiple clock references to discipline the internal circuits. GNSS is the default and the most obvious reference but signals such as PTP, SyncE, ToD, IRIG-B even MHz, T1/E1 can also be used as back-up time references in case of failure of the first reference or in case of GNSS spoofing.
Everything will continue as before and without losing the phase or the time of output signals.
PRP fault-tolerant to failures
Net.Time φ a Power Utility clock
Net.Time Phi is a PTP/NTP over PRP clock designed to facilitate the integration of conventional substations with the new IEC 61850 standards by offering a wide variety of time reference inputs and outputs including PTP, NTP, PRP, ToD, PPS, IRIG-B, DCF77, MHz, T1/E1. It can be equipped with OCXO or Rubidium oscillator to improve timing in hold-over mode, the result is a rugged and fault tolerant solution to power, network and timing failures.

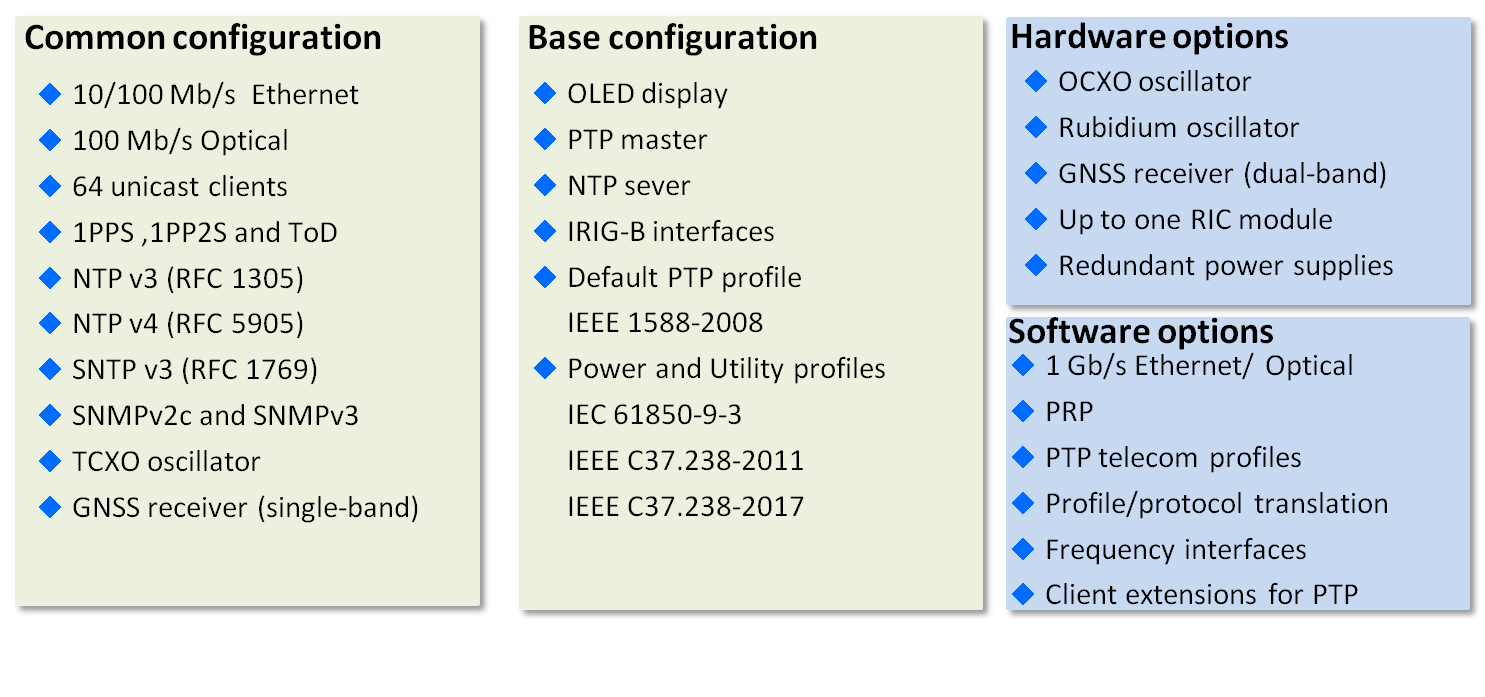

Net.Time φ: Configuration
Net.Time Ꚍ a Telecom clock
Net.Time Tau is a network clock ideal for ensuring the delivery of quality time, phase and frequency. It is suitable for telecom, financial, broadcast and data center applications because it is the most rugged and friendly; accepting a wide variety of time references and providing the widest range of timing signals to facilitate network integration.

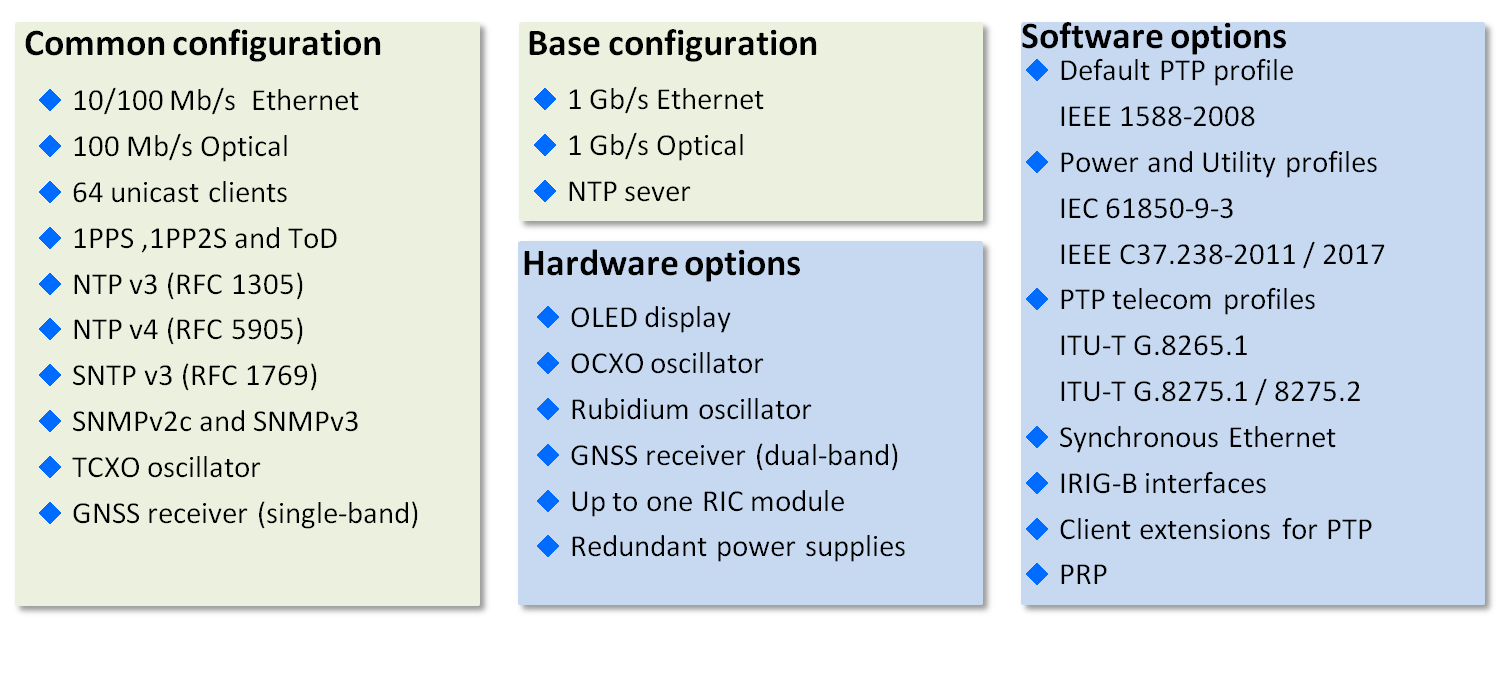

Net.Time Ꚍ: Configuration
Net.Time Ω an Industrial clock
Net.Time Omega is a general purpose PTP / NTP clock designed to meet the timing demands of any industry, including data centers, stock exchange, broadcast, IoT, power utilities, or air traffic control. The result is always a reliable and fault-tolerant solution to loss of reference, network outages and power failures. Simultaneously Net.Time Ω simplifies the migration to PTP without abandoning investments in NTP, IRIG-B, T1/E1 or MHz, facilitating on this way the integration, interaction and translation of all types of signals, profiles and protocols.

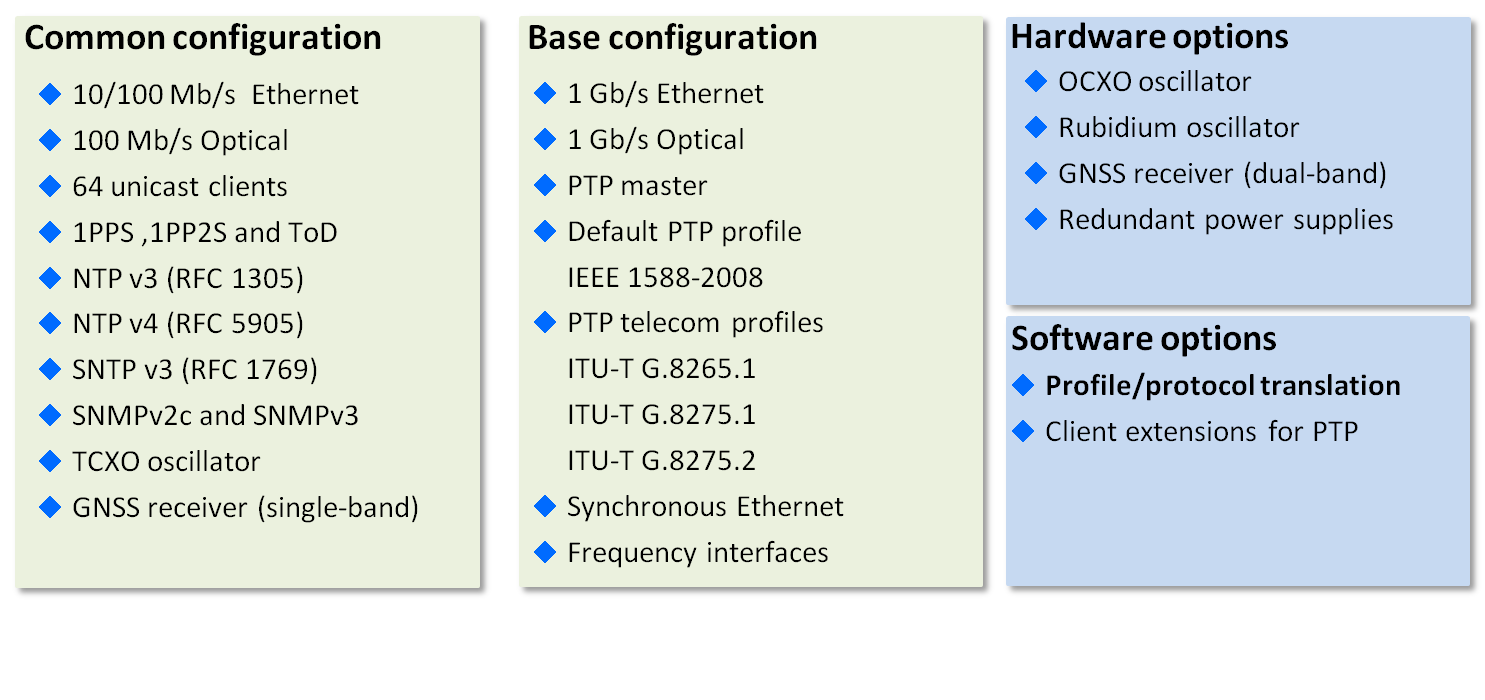

Net.Time Ω: Configuration
