Albedo 網路同步測試設備 Network Synchronisation Test Equipment

支援 PTP-1588v2 和 SyncE 模擬和分析

• PTP Master/Slave clock modes
• Multiple PTP Profiles: Default (IEEE 1588v2), Freq. Delivery (ITU-T G.8265.1), Power Profile
• Multiple Time References: GNSS, PPS / ToD, OCXO, SyncE, PTP, E1/T1, 10MHz
• Multiple Timing Outputs: PTP , SyncE, E1/T1, 2.0/1.5 MHz, 1 x PPS
• PTP State, Decoding, Counts, Statistics
• PTP Sync Floor Delay Population
• PTP Wander Analysis TIE, MTIE, TDEV
• Ethernet Line frequency (MHz), offset (ppm), drift (ppm/s)

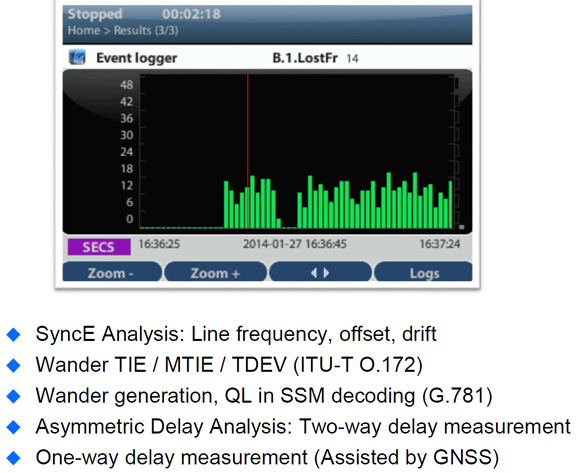

• SyncE Wander analysis/generation
• Analysis / Generation ESMC messages and SSM count and rate
• Asymmetric Delay Analysis
• Latency test assisted by GNSS including One-way and Two-way delay measurement
• Packet Analysis, Ethernet/IP Statistics, Bandwidth
• IEEE RFC2544, ITU-T Y.1544 Loop back mode
• L1/L2/L3/L4 loopback
